IOLAN SDS8 |

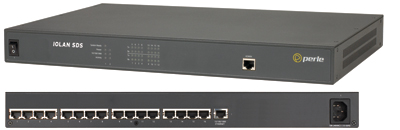

IOLAN SDS16 |
| Processor |
MPC8349E, 400 Mhz, 750 MIPS |
Memory |
| RAM MB |
64 |
64 |
| Flash MB |
16 |
16 |
Interface Ports |
| Number of Serial Ports |
8 |
16 |
| Serial port interface |
Software selectable RS232 / RS485 / RS422 DTE on RJ45 |
| Sun / Solaris |
Sun break safe |
| Serial port speeds |
50bps to 230Kbps with customizable baud rate support |
| Data bits |
5,6,7,8, 9-bit protocol support |
| Parity |
Odd, Even, Mark, Space, None |
| Flow Control |
Hardware, Software, Both, None |
| Serial port protection |
15Kv Electrostatic Discharge
Protection (ESD) |
| Local console port |
RS232 on RJ45
with DB9 adapter (provided) |
| Network |
10/100/1000-base TX Ethernet RJ45 |
Software selectable Ethernet speed 10/100/1000, Auto |
Software selectable
Half/Full/Auto duplex |
| Ethernet Isolation |
1.5Kv Magnetic Isolation |
Power |
| Power Supply |
USA models - IEC320-C13 to NEMA 5-15P line cord |
UK models - IEC320-C13 to BS1363 line cord |
EU models - IEC320-C13 to CEE 7/7 Schuko |
South Africa Models - IEC320-C13 to BS546 line cord |
Australia models - IEC320-C13 to AS3112 line cord |
| Nominal Input Voltage |
110/230v AC |
| Input Voltage Range |
100-240v AC |
| AC Input Frequency |
47-63Hz |
| Current Consumption @ 100v ( Amps ) |
0.12 |
0.13 |
| Current Consumption @ 240v ( Amps ) |
0.06 |
0.06 |
| Typical Power Consumption (Watts) |
12 |
13 |
| Power Line Protection |
Fast transients: 1 KV (EN61000-4-4 Criteria B) |
Surge: 2KV ( EN61000-4-5 common mode),
1KV ( EN61000-4-5 differential and common modes) |
Indicators |
| LEDs |
Power |
System Ready |
Network Link activity |
Serial: Transmit and Receive
data per port |
Environmental Specifications |
Heat Output ( BTU/HR ) |
42 |
45 |
| MTBF( hours ) |
140,740 |
110,300 |
| Operating Temperature |
0C to 55C, 32F to 131F |
| Storage Temperature |
-40C to 85C, -40F to 185F |
| Humidity |
5 to 95% (non condensing) for both storage and operation. |
| Case |
SECC Zinc plated sheet metal (1 mm) |
| Ingress Protection rating |
IP30 |
| Mounting |
1U - 19" rack, front and rear mounting hardware included |
Product Weight and Dimensions |
| Weight |
3 kg |
3.1 kg |
| Dimensions |
1U Rack form factor - 26.4 x 43.4 x 4.4 (cm), 10.38 x 17.1 x 1.75 (in) |
Packaging |
| Shipping Dimensions |
59 x 36 x 9cm |
| Shipping Weight |
3.98 kg |
4.0 kg |
Regulatory Approvals |
| Emissions |
FCC Part 15, Subpart B, Class A |
CFR47:2003, Chapter 1, Part 15 Subpart B,(USA) Class A |
ICES-003, Issue 4, February 2004 (Canada) |
EN55022:1998 + A1:2000 + A2:2003 Class A |
EN61000-3-2 : 1995, Limits for Harmonic Current Emissions |
EN61000-3-3 : 1995, Limits of Voltage Fluctuations and Flicker |
| Immunity |
EN55024:1998 + A1:2001 + A2:2003 |
EN61000-4-2: Electrostatic Discharge |
EN61000-4-3: RF Electromagnetic Field Modulated |
EN61000-4-4: Fast Transients |
EN61000-4-5: Surge |
EN61000-4-6: RF Continuous Conducted |
EN61000-4-8: Power-Frequency Magnetic Field |
EN61000-4-11: Voltage Dips and Voltage Interruptions |
| Safety |
IEC 60950-1 : 2005 (2nd Edition) + A1 : 2009 and
EN 60950-1 : 2006 + A11 : 2009 |
CAN/CSA-C22.2 No. 60950-1-03 and ANSI/UL
60950-1,
First Edition April 1st 2003 (Recognized Component) |
| Other |
RoHS - 2002/95/EC Directive |
WEEE - 2002/96/EC Directive |
CCATS - G052929 |
ECCN - 5A992A |
HTSUS Number: 8471.80.1000 |
Perle Lifetime warranty |
IOLAN DTE
RJ45 Socket |
IOLAN RJ45 Socket |
Direction |
RS232 |
RS485 Full Duplex |
RS485 Half Duplex |
RS422 |
1 |
|
DCD |
|
|
|
2 |
|
RTS |
TxD+ |
DATA+ |
TxD+ |
3 |
|
DSR |
|
|
|
4 |
|
TXD |
TxD- |
DATA- |
TxD- |
5 |
|
RXD |
RxD+ |
|
RxD+ |
6 |
|
GND |
GND |
GND |
GND |
7 |
|
CTS |
RxD- |
|
RxD- |
8 |
|
DTR |
|
|
|
Optional
Perle adapters for use with straight thru CAT5 cabling |
