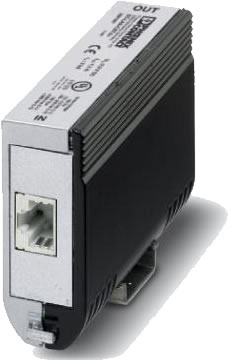

DT-LAN-CAT6 Protector de sobretensión
Protector de Sobretensión contra Rayos de Línea de Datos CAT5/6/7

- Protección para las interfaces de datos
- Velocidades de transmisión fiable de hasta 10 Gbps
- Adaptador de protección para ocho rutas de señal mediante conector RJ45 (incluye PoE+)
- Apto para redes de datos de alta velocidad de categoría 6
- Puede ser instalado en un armario de control retirando el adaptador de conexión de tierra
El DT-LAN-CAT6 es un adaptador de protección para ser insertado en la línea de datos para la protección de interfaces LAN y el cable RJ45.
Protección contra sobretensiones para la tecnología de la información
Los datos fiables son imprescindibles en la industria actual. Los sistemas sensibles utilizados en redes LAN funcionan con altas frecuencias en niveles de baja señal y están conectados en red sobre un área amplia. Las subidas de tensión pueden conducir rápidamente a errores importantes y, en el peor de los casos, la pérdida de datos. Los protectores de sobretensión de línea de datos están especialmente diseñados para proteger su inversión en costosos equipos conectados por cable, inalámbricos y PoE.
Protección de datos de alta velocidad
Si necesita protección eficaz contra rayos, interferencias de radiofrecuencia, descargas electrostáticas y sobretensiones transitorias para la transmisión de datos de alta velocidad, el DT-LAN-CAT.6+ ofrece una protección universal sin afectar a la señal a velocidades de red de hasta 10 Gbps.
Adecuado para los siguientes entornos
- 100/1000/10G-Base-T
- Power over Ethernet (PoE+) “Mode A” y “Mode B”
- TOKEN Ring
- FDDI/CDDI
- ISDN
- DS1
- VG-AnyLAN
- PROFINET
Protección contra sobretensiones de conformidad con la clase EA (CAT6A). Conector RJ45 con cable de toma de tierra independiente y conexión a tierra con borne para carriles DIN NS 35.




DT-LAN-CAT.6+ Technical Specifications
Ambient Conditions | |
---|---|
Ambient temperature (operation) | -40 °C ... 70 °C |
Ambient temperature (storage/transport) | -40 °C ... 70 °C |
Degree of protection | IP20 |
Protective circuit | |
IEC test classification | B2 |
C1 | |
C2 | |
C3 | |
D1 | |
Maximum continuous voltage UC | ≤ 3.3 V DC (± 60 V DC/PoE+) |
Rated current | ≤ 1.5 A (25 °C) |
Operating effective current IC at UC | ≤ 1 µA |
Residual current IPE | ≤ 400 µA |
Nominal discharge current In (8/20) µs (Core-Core) | 100 A |
Nominal discharge current In (8/20) µs (core-earth) | 2 kA (per signal pair) |
Total discharge current Itotal (8/20) µs | 10 kA |
Nominal pulse current Ian (10/700) µs (Core-Core) | ≤ 40 A |
Nominal pulse current Ian (10/700) µs (Core-Earth) | ≤ 160 A |
Output voltage limitation at 1 kV/µs (core-core) spike | ≤ 85 V (PoE) |
Output voltage limitation at 1 kV/µs (core-earth) spike | ≤ 700 V |
Output voltage limitation at 1 kV/µs (core-core) static | ≤ 9 V |
Output voltage limitation at 1 kV/µs (core-earth) static | ≤ 700 V |
Residual voltage at In (conductor-conductor) | ≤ 15 V |
≤ 100 V (PoE) | |
Voltage protection level Up (core-core) | ≤ 9 V (B2 - 1 kV/25 A) |
≤ 100 V (B2 - 1 kV/25 A - PoE) | |
≤ 15 V (500 V / 100 A) | |
Voltage protection level Up (core-ground) | ≤ 900 V (B2 - 4 kV/100 A) |
≤ 700 V (C2 - 4 kV/2 kA) | |
Response time tA (core-core) | ≤ 1 ns |
Response time tA (core-earth) | ≤ 100 ns |
Input attenuation aE, sym. | ≤ 1 dB (up to100 MHz/direct measuring) |
≤ 1 dB (up to 250 MHz/direct measuring) | |
≤ 3 dB (up to 500 MHz/direct measuring) | |
Near-end crosstalk attenuation | ≥ 35 dB (250 MHz/100 Ω/link) |
≥ 45 dB (100 MHz / 100 Ω / Link) | |
≥ 27 dB (500 MHz / 100 Ω / Link) | |
≥ 39 dB (250 MHz/100 Ω/direct measuring) | |
Cut-off frequency fg (3 dB), sym. in 100 Ohm system | > 500 MHz |
Capacity (core-core) | typ. 12 pF (f= 1 MHz / VR= 0 V) |
Capacity (core-earth) | typ. 2 pF (f= 1 MHz / VR= 0 V) |
Surge protection fault message | None |
Impulse durability (conductor-conductor) | B2 - 1 kV / 25 A |
Impulse durability (conductor-ground) | B2 - 4 kV/100 A |
C2 - 4 kV/2 kA | |
D1 - 1 kA | |
General | |
Housing material | Zinc die-cast |
Color | silver/black |
Mounting type | Connection-specific attachment plug and DIN rail, 35 mm |
Design | Attachment plug for DIN rail mounting |
Number of positions | 8 |
Direction of action | Line-Line & Line-Ground/Shield |
Connection, equipotential bonding | |
Connection method | Cable connection |
Connection data | |
Connection method | RJ45 |
Connection method IN | RJ45 socket |
Connection method OUT | RJ45 socket |
Dimensions | |
Height | 102 mm |
Width | 25 mm |
Depth | 63.5 mm |
![]() |
|
Standards and Regulations | |
Standards / specifications | IEC 61643-21 2002 |
EN 50173-1 2002 | |
ISO/IEC 11801-Am.1 2006 | |
Environmental Product Compliance | |
China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
Reach and RoHS Compliant | Reach and RoHS Compliant |
Approvals | |
UL Listed EAC |
|
Commercial data | |
Packing unit | 1 |
Weight per piece | 320.0 g |
Country of origin | Germany |
Data Line Surge Protector Application Diagram |
---|
![]() |
Circuit Diagram |
![]() |
Protection Against Surge Voltage |
LAN systems are safely protected against surge voltage by CAT6 Surge Protectors. Due to the high bandwidth of the surge protectors, the transmission signal is not influenced. All signal wires and the ground conductor must be connected to the surge protector according to the connection scheme. Any DIN rail should be grounded.![]() |
