IOLAN STS Rack

Servidor de Terminal Serie a Ethernet

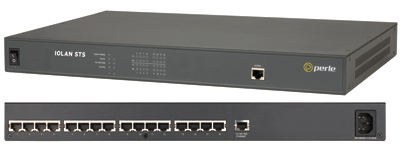

Servidor de Terminal IOLAN STS16

Servidor de Terminal IOLAN STS16

Servidor de Terminal IOLAN STS16
  • 4, 8, 16 o 24 puertos RS232 en puertos RJ45
  • 10/100/1000 Ethernet
  • Modelos de alimentación de AC o 48 V DC
  • Conjunto de funciones para seguridad avanzada
Obtener una cotización
Demo Now!
  • Detalle de Producto
  • Funciones
  • Espec. Hardware
  • Diagramas
  • Documentación
  • Como Comprar

Los ingenieros y jefes de proyectos que precisen una solución asequible de conexión serie RS232 a Ethernet en un rack 1U que mantenga la integridad del protocolo de dispositivos serie a través de Ethernet pueden elegir el IOLAN STS Rack. Con el procesador de mayor rendimiento disponible en el mercado y la tecnología TrueSerial™ exclusiva de Perle, el IOLAN STS Rack ofrece las conexiones serie más auténticas a través de Ethernet.

Idóneo para

  • Ingenieros y jefes de proyectos que precisen una interfaz serie a Ethernet de alto rendimiento para entre 4 y 24 dispositivos basados en el estándar serie RS232. Conexión con aplicaciones basadas en el estándar serie a través de Ethernet
  • Informáticos que precisen un servidor de terminales o servidor de consolas serie asequible para administración de falta de ancho de banda de equipos informáticos ubicados en centros de datos pequeños o instalaciones remotas

Razones por las que los modelos IOLAN STS Rack son la opción preferida:

  • Procesador de 400 Mhz, 750 MIPS y 32 bits* con cifrado de hardware integrado que ofrece la máxima velocidad disponible en el mercado. Idóneo para aplicaciones sensibles al factor tiempo
  • Soporte IP de nueva generación (IPv6) para proteger su inversión y lograr la compatibilidad de red
  • Tecnología de paquetes TrueSerial™ – las conexiones serie a través de Ethernet más auténticas; garantizan la integridad del protocolo serie
  • Funcionalidad de host principal/de respaldo que permite conexiones automáticas con hosts alternativos en el caso de que la conexión TCP principal esté fuera de servicio
  • EasyPort Web – Acceso a los puertos de consola serie de su equipo mediante su navegador de Internet con capacidad Java
  • TruePort – el redirector com/tty de Perle para aplicaciones basadas en el estándar serie funciona con Windows, Vista, Linux, Solaris, SCO y Unix
  • Clustering – ofrece una vista única de todos los puertos de consola de falta de ancho de banda. Idóneo para grandes centros de datos
  • DNS dinámico – Eacceso sencillo a la administración de consolas desde cualquier lugar a través de Internet
  • Ciclo de alimentación de equipos inteligente con interruptores de alimentación remotos Perle
  • Acceso de navegador sin código Java a puertos de consola serie remota a través de Telnet y SSH
  • Garantía de por vida: la mejor protección de su inversión disponible en el mercado

Características de software - Servidores de terminal IOLAN STS

Serial Port Access
Connect directly using Telnet / SSH by port and IP address
Connect with EasyPort menu by Telnet / SSH
Use an internet browser to access with HTTP or secure HTTPS via EasyPort Web menu
Java-free browser access to remote serial console ports via Telnet and SSH
Ports can be assigned a specific IP address ( aliasing )
Multisession capability enables multiple users to access ports simultaneously
Multihost access enables multiple hosts/servers to share serial ports
Accessibility
In-band ( Ethernet ) and out-of-band ( dial-up modem ) support
Dynamic DNS enables users to find a console server from anywhere on the Internet
Domain name control through DHCP option 81
IPV6 and IPV4 addressing support
Availability
Primary/Backup host functionality enables automatic connections to alternate host(s)
Security
SSH v1 and v2
PCI DSS Compliance: TLS v1.2, TLS v1.1, TLS v1.0, SSL v3.0, SSL v2.0
SSL Server and SSL client mode capability
SSL Peer authentication
IPSec VPN : NAT Traversal, ESP authentication protocol
SSH ciphers: AES-CTR, AES-GCM and ChaCha20-poly1305
SSL encryption: AES-GCM, key exchange ECDH-ECDSA, HMAC SHA256, SHA384
Encryption: AES (256/192/128), 3DES, DES, Blowfish, CAST128, ARCFOUR(RC4), ARCTWO(RC2)
Hashing Algorithms: MD5, SHA-1, RIPEMD160, SHA1-96, and MD5-96
Key exchange: RSA, EDH-RSA, EDH-DSS, ADH
X.509 Certificate verification: RSA, DSA
Certificate authority (CA) list
Local database
RADIUS Authentication, Authorization and Accounting
TACACS+ Authentication, Authorization and Accounting
LDAP, NIS, Kerberos Authentication
RSA SecureID-agent or via RADIUS Authentication
SNMP v3 Authentication and Encryption support
IP Address filtering
Disable unused daemons
Active Directory via LDAP
Terminal Server
Telnet
SSH v1 and v2
Rlogin
Auto session login
LPD, RCP printer
MOTD - Message of the day
Serial machine to Ethernet
Tunnel raw serial data across Ethernet - clear or encrypted
Raw serial data over TCP/IP
Raw serial data over UDP
Serial data control of packetized data
Share serial ports with multiple hosts/servers
Virtual modem simulates a modem connection - assign IP address by AT phone number
Virtual modem data can be sent over the Ethernet link with or without SSL encryption
TruePort com/tty redirector for serial based applications on Windows, Linux, Solaris, SCO, HP UX, NCR UNIX and AIX. For a complete list of all the latest drivers click here
"TrueSerial packet technology provides the most authentic serial connections across Ethernet ensuring serial protocol integrity"
RFC 2217 standard for transport of serial data and RS232 control signals
Customizable or fixed serial baud rates
Software Development Kit ( SDK ) available
Serial encapsulation of industrial protocols such as ModBus, DNP3 and IEC-870-5-101
ModBus TCP gateway enables serial Modbus ASCII/RTU device connection to ModBus TCP
Data logging will store serial data received when no active TCP session and forward to network peer once session re-established - 32K bytes circular per port
Console Management
Sun / Oracle Solaris Break Safe
Local port buffer viewing - 256K bytes per port
External port buffering via NFS, encrypted NFS and Syslog
Event notification
Manage AC power of external equipment using Perle RPS power management products
Clustering - central console server enables access ports across multiple console servers
Windows Server 2003/2008 EMS - SAC support GUI access to text-based Special Administrative Console
Remote Access
Dial, direct serial PPP, PAP/CHAP, SLIP
  HTTP tunneling enables firewall-safe access to remote serial devices across the internet
Automatic DNS Update Utilize DHCP Opt 81 to set IOLAN domain name for easy name management and with Dynamic DNS support , users on the Internet can access the device server by name without having to know its IP address. See Automatic DNS update support for details
IPSEC VPN client/servers Microsoft L2TP/IPSEC VPN client ( native to Windows XP)
Microsoft IPSEC VPN Client ( native to Windows Vista )
Cisco routers with IPSEC VPN feature set
Perle IOLAN SDS/STS and SCS models
OA&M ( Operations, Administration and Management )
SNMP V3 - read and write, Perle MIB
Syslog
Perle Device Manager - Windows based utility for large scale deployments
Configurable default configuration
Installation Wizard
Set a Personalized Factory Default for your IOLANs
Protocols
IPv6, IPv4, TCP/IP, Reverse SSH, SSH, SSL, IPSec/IPv4, IPSec/IPv6, L2TP/IPSec, CIDR, RIPV2/MD5, ARP, RARP, UDP, UDP Multicast, ICMP, BOOTP, DHCP, TFTP, SFTP, SNTP, Telnet, raw, reverse Telnet, LPD, RCP, DNS, Dynamic DNS, WINS, HTTP, HTTPS, SMTP, SNMPV3, PPP, PAP/CHAP, SLIP, CSLIP, RFC2217, MSCHAP

Hardware Specifications - IOLAN STS Serial Terminal Server

  IOLAN STS4 IOLAN STS8 IOLAN STS16 IOLAN STS24
Processor MPC8349E, 400 Mhz, 750 MIPS
Memory
RAM MB 32 64 64 128
Flash MB 16 16 16 16
Interface Ports
Number of Serial Ports 4 8 16 24
Serial Port Interfase RS232 DTE on RJ45
Sun / Solaris Sun / Oracle ‘Solaris' Safe - no "break signal" sent during power cycle causing costly server re-boots or downtime
Serial Port Speeds 50bps to 230Kbps with customizable baud rate support
Data Bits Configurable for 5,6,7 or 8-bit protocol support
Use TruePort to transparently pass 9-bit serial data
Parity Odd, Even, Mark, Space, None
Flow Control Hardware, Software, Both, None
Serial Port Protection 15Kv Electrostatic Discharge Protection (ESD)
Local Console Port RS232 on RJ45 with DB9 adapter (provided)
Network 10/100/1000-base TX Ethernet RJ45
Software selectable Ethernet speed 10/100/1000, Auto
Software selectable Half/Full/Auto duplex
Ethernet Isolation 1.5Kv Magnetic Isolation
Power
Power Supply
USA models IEC320-C13 to NEMA 5-15P line cord
UK models IEC320-C13 to BS1363 line cord
EU models IEC320-C13 to CEE 7/7 Schuko
South Africa Models IEC320-C13 to BS546 line cord
Australia models IEC320-C13 to AS3112 line cord
Nominal Input Voltage 110/230v AC
Input Voltage Range 100-240v AC
AC Input Frequency 47-63Hz
Current Consumption @ 100v (Amps) 0.11 0.11 0.12 0.12
Current Consumption @ 240v (Amps) 0.05 0.05 0.06 0.06
Typical Power Consumption (Watts) 11 11 12 12
Power Line Protection Fast transients: 1 KV (EN61000-4-4 Criteria B)
Surge: 2KV (EN61000-4-5 common mode),
1KV (EN61000-4-5 differential and common modes)
Indicators
LEDs Power
System Ready
Network Link activity
Serial: Transmit and Receive data per port
Environmental Specifications
Heat Output
(BTU/HR)
38 38 42 42
MTBF (Hours) 179425 174418 160992 130470
*Calculation model based on MIL-HDBK-217-FN2 @ 30 °C
Operating Temperature 0C to 55C, 32F to 131F
Storage Temperature -40C to 85C, -40F to 185F
Humidity 5 to 95% (non condensing) for both storage and operation.
Ingress Protection Rating IP30
Mounting 1U - 19" rack, front and rear mounting hardware included
Product Weight and Dimensions
Weight 2.8 kg 3 kg 3.1 kg 3.1 kg
Dimensions 1U Rack form factor - 26.4 x 43.4 x 4.4 (cm), 10.38 x 17.1 x 1.75 (in)
Packaging
Shipping Dimensions 59 x 36 x 9cm
Shipping weight 3.96 kg 3.98 kg 4.0 kg 4.2 kg
Regulatory Approvals
Emissions FCC Part 15, Subpart B, Class A
CFR47:2003, Chapter 1, Part 15 Subpart B,(USA) Class A
ICES-003, Issue 4, February 2004 (Canada)
CISPR 32:2015/EN 55032:2015 (Class A)
EN55011 (CISPR11)
EN61000-3-2 : 2010, Limits for Harmonic Current Emissions
EN61000-3-3 : 2010, Limits of Voltage Fluctuations and Flicker
Immunity CISPR 24:2010/EN 55024:2010
EN61000-4-2: Electrostatic Discharge
EN61000-4-3: RF Electromagnetic Field Modulated
EN61000-4-4: Fast Transients
EN61000-4-5: Surge
EN61000-4-6: RF Continuous Conducted
EN61000-4-8: Power-Frequency Magnetic Field
EN61000-4-11: Voltage Dips and Voltage Interruptions
Safety UL/EN/IEC 62368-1
CAN/CSA C22.2 No. 62368-1
IEC 60950-1(ed 2); am1, am2 and
EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013
CAN/CSA-C22.2 No. 60950-1-03 and ANSI/UL 60950-1,
First Edition April 1st 2003 (Recognized Component)
Other Reach, RoHS and WEEE Compliant
CCATS - G168387
ECCN - 5A992
HTSUS Number: 8517.62.0020
Perle Limited Lifetime Warranty

IOLAN RJ45 Serial Connector Pinout

RJ45 SocketRJ45 Socket

Pinout Direction EIA-232
1 in DCD
2 out RTS
3 in DSR
4 out TxD
5 in RxD
6 GND
7 in CTS
8 out DTR

Optional Perle adapters for use with straight thru CAT5 cabling

TCP

Dispositivos TCP RAW

Una conexión de dispositivo TCP RAW (sin procesar o en bruto) que puede iniciarse desde el dispositivo serie a Ethernet o desde el host/servidor remoto. Puede tratarse de una conexión de punto a punto o compartida, en la que un dispositivo serie es compartido por múltiples dispositivos. Las sesiones TCP pueden iniciarse desde la aplicación de servidor TCP o desde el adaptador serie a Ethernet IOLAN de Perle.

Diagrama TCP

UDP

Dispositivos UDP RAW

Cuando se utilizan con aplicaciones basadas en UDP, los IOLAN de Perle pueden convertir los datos de equipos serie para transportarlos a través de paquetes UDP, bien de punto a punto o bien de manera compartida por múltiples dispositivos.

Diagrama UDP

Acceso de Consola

Administración de consolas

Para acceder a puertos de consola remotos de routers, conmutadores, etc., los IOLAN de Perle proporcionan a los administradores un acceso seguro a estos puertos RS232 mediante Telnet inverso / SSH dentro de banda o módems de acceso telefónico fuera de banda. Hay disponibles modelos IOLAN de Perle con módem integrado.

diagrama de consola

COM/TTY

Conecte aplicaciones basadas en serie a un controlador de puerto COM/tty

Los puertos serie pueden conectarse a servidores de red o estaciones de trabajo que ejecuten el software TruePort de Perle, que actúa como puerto COM virtual. Las sesiones pueden iniciarse desde el IOLAN de Perle o desde TruePort.

Diagrama com tty

Creación de Túneles

Creación de túneles serie entre dos dispositivos serie

La creación de túneles serie le permite establecer un enlace a través de Ethernet hasta un puerto serie situado en otro IOLAN. Ambos puertos serie de IOLAN deben estar configurados para creación de túnel serie (típicamente, uno de los puertos serie se configura como servidor de túnel y el otro, como cliente de túnel).

Diagrama de tunelizacion

Módem virtual

Módem virtual

Permite al IOLAN de Perle simular una conexión de módem. Cuando está conectado al IOLAN e inicia una conexión de módem, el IOLAN establece una conexión TCP con otro IOLAN configurado con un puerto serie de módem virtual o con un host que ejecute una aplicación TCP.

Diagrama de Módem
